Item#
|
EPC-601-MIL
*Pre-order Required
|
|
Description
|
HawkEye
MIL-spec
Mobile

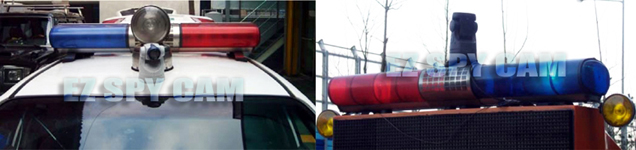

Armored PTZ Patrol Video System
w/ Remote Monitoring Unit w/ Built-in 3-axis Joystick PTZ
Controller & 7"TFT-LCD Display
|
|
Specification
of Camera
|
|
Protection
Level
|
IP-66
Weatherproof, Dust Tight, & Shock-Resistant Die-cast
Aluminum & “O”- Ring sealed
|
|
Corrosion
Free
|
All
internal parts are protected with epoxy powder coating
|
|
Housing
Construction
|
Solid
Cast Aluminum & Shockproof Pyres Glass Lens Window
|
|
Wind
Resistance
|
Tested
against the wind speed up to 1,000mph w/ Mounting on a Thule roof
rack
|
|
Vibration
Level
|
3Grms
3 Axis Range 5 ~ 1000Hz
|
|
Sensor
|
1/3"
Sony Super HAD Color CCD II w/ Built-in Strong Image Stabilizer
|
|
TV
System
|
Switchable
NTSC
or PAL
|
|
Resolution
|
Horizontal
540 TV Lines
|
|
Effective
Pixels
|
Appx.
680K (NTSC) / 880K (PAL)
|
|
Lens Spec
|
x10
Optical Zoom --- Aperture Focal Length f=3.8 (Wide) ~ 38mm
(Tele)--- F5.1 to F51.0
|
|
x10
Digital Zoo ---On / Off
|
|
Angle
Field of View --- H: 50.0º
(Wide) to 5.4º (Tele)
|
|
Min.
Focus Distance - 15mm (Wide End) to 800mm (Tele End)
|
|
Other
Electrical
Features
|
Lens
Focus --- Auto (Normal or Low Sensitivity), One-Push AF, Manual,
Infinity, Interval AF, Zoom Trigger AF
|
|
S/N
Ratio (Y-Signal) --- Over
50dB
|
|
Video
Output --- CVBS: 1.0Vp-p / 75ohm
|
|
Lens
Initialize --- Built-in
|
|
Day
& Night --- IR Cut Filter Removable
|
|
Camera
Title --- On / Off
|
|
Gain
Control --- Low, Middle, High, Manual, Off
|
|
White
Balance --- 1,800K ~ 10,500K
|
|
Electronic
Shutter Speed --- 22 steps 1/1 to 1/10.000
|
|
Backlight
--- BLC / HLC / OFF
|
|
DNR
--- ON / OFF
|
|
Privacy
Function --- 24 Zones
|
|
Baud
Rate --- 9.6kb/s,
19.2kb/s, 38.4kb/s, Selectable 1 or 2 Stop Bit
|
|
Flip,
Mirror, Image Stabilizer --- On / Off
|
|
Low
Light Long Integration --- Yes (25s)
|
|
Rich
Exposure Control & Time Stamping / Titling --- Yes
|
|
PEL
Count (NTSC / PAL) --- 380,000
/ 440,000
|
|
Min.
Illumination --- 0.02
LUX (NIR Mode)
|
|
Communication
|
RS-485
- Multiple Protocol Supported (Auto Detection)
|
|
Pan
|
Noiseless
0
- 360º
(Endless) Rotation & Auto Flip
|
|
Pan
Speed
|
Preset -
110º/ sec. +/-0.1º Accuracy
|
|
Tilt
Range
|
-45~90º
(64 steps proportional to zoom)
|
|
Tilt Speed
|
Preset
- 60º
/sec. +/-0.05º Accuracy
|
|
Display
|
4
Area Title / Zone Title On/Off (Start / End Zone)
|
|
Auto
Scan
|
4
Programmable Speed and Diagonal Scan
|
|
Preset
|
63
positions & Auto Swing Function ( Less than 0.1º
Accuracy)
|
|
Guard
Tour
|
8
Guard tours, Consisting of 63 presets and functions
|
|
Pattern
|
4
Patterns
|
|
Flip
|
Digital
/ Auto / Off ( Rotate 180º
at Bottom of Tilt)
|
|
Alarm
In
|
2
Alarm ( NO/NC, Priority)
|
|
Alarm
Out
|
2
Relay Out ( Hold, Latch)
|
|
Camera
ID
|
Addressable
from 0 ~ 255
|
|
Fan
& Heater
|
Built-in
- 42W
|
|
Power
|
DC11.5V
~ DC30V
by DC-DC Convertor
|
|
Power
Consumption
|
500mA
/ 1.2A Peak
|
|
Operating
Temp
|
-30ºC
~ 55ºC
|
|
Humidity
|
0 to 90% RH
(Non-condensing)
|
|
Certification
|
CE,
EMC, FCC Class A, RoHS, E-Mark
|
|
Dimension
/ Wg't
|
Ø109mm x
H151mm / 3.75Kg
|
|
Specification
of Monitoring Remote
Control Unit
|
|
TV
System
|
Switchable
NTSC
or PAL
|
|
Display
|
Type:
Active TFT-LCD Color / Size: 7" Diagonal / Forma: 440 x 234 /
Backlight: 360NIT
|
|
Housing
Construction
|
Aluminum
proof Pyres Glass Lens Window
|
|
Joystick
Control
|
Pan
/ Tilt / Zoom / Menu to all other adjustable functions
|
|
Communication
|
RS-485
- Multiple Protocol Supported (Auto Detection)
|
|
PTZ
Control
|
Joystick
Speed --- 0 ~ 100º
Adjustable / Preset Speed --- 120º/sec
|
|
Connectors
|
2-RCA
Video Jacks, 9-pin/D-SUB, RS-485 RCA Jack, Audio RCA Jack, Power
2.5mm Locking
|
|
Power
Consumption
|
800mA
(12W)
|
|
Power
|
DC11.5V
~ DC30V
by DC-DC Convertor
|
|
Dimension
/ Wg't
|
292mm
x 136mm x 50mm(WxDxH) / 2.5Kg
|
|

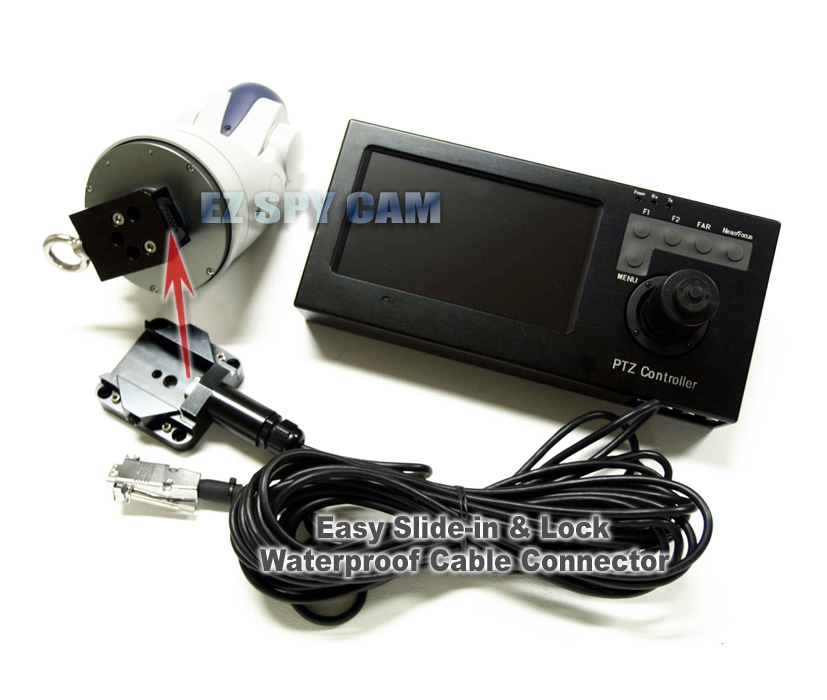

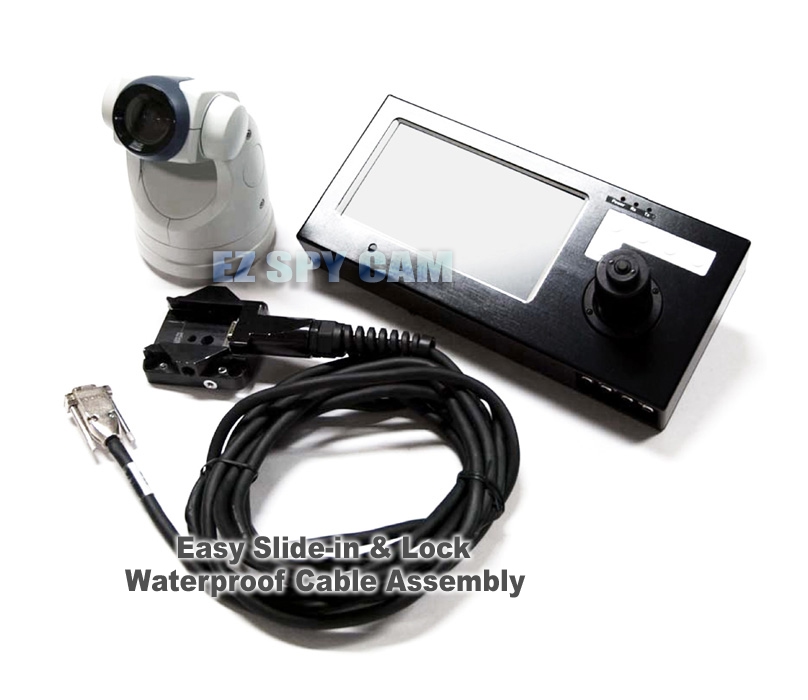

System
Set Includes
|
PTZ
Camera, Remote Monitoring Control Unit,
15ft Cable Assembly, AC/DC Power Supply, Instruction Manual
|
|
|
*Click
the following link or paste to your web browser to
download Typical PTZ connection diagram.
http://www.ezspycam.com/Download/IG-PTZcam-connection.pdf
|
|
|
*To
download the step-by-step instruction manual or detailed spec sheet, please request it via
following email, support@ezspycam.com
along with your order ID# or Invoice#.
|
