Item#
|
ESC-HA001-BL
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
HD

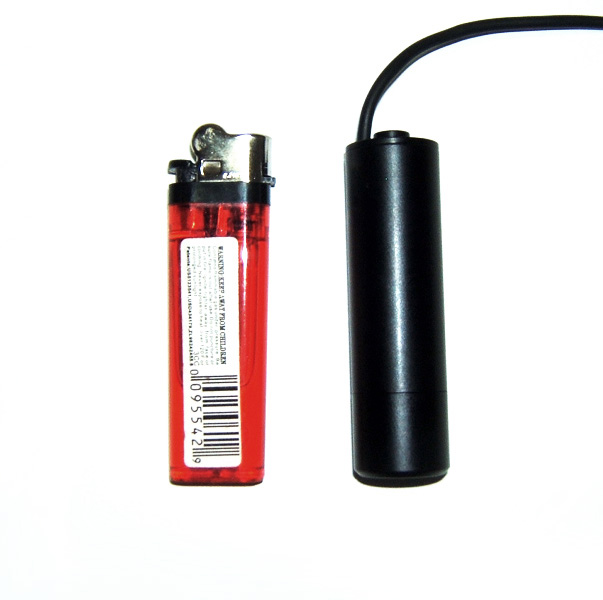

Starlight Mini Lipstick Cam
w/ 3.6mm Board Lens
|
|
Item#
|
ESC-HA001-PL
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
HD Starlight Mini Lipstick Cam
w/ 3.7mm Pinhole Lens
|
|
Specification:
|
|
Sensor Size
|
Sony
IMX
323 Color Sensor
|
|
Video
Signal Type
|
HD-AHD
* Requires HD-AHD DVR or converter to
view the HD-AHD images.
|
|
Video
Resolution
|
2
Mega Pixels
|
|
TV
System
|
NTSC
or PAL (Optional)
|
|
Pixels
|
NTSC:
1920(H) X 1080(V)
@ 25fps
|
|
Electronic
Shutter
|
NTSC:
1 /60 -1/100000 sec
|
|
Minimum
Illumination
|
0.0001
Lux (F1.2)
|
|
Lens
|
Board
Lens 3.6mm / Pinhole Lens: 3.7mm
|
|
Viewing
Angle
|
Board
Lens: 92 Deg. / Pinhole Lens: 90 Deg.
|
|
Day
Visibility
|
3
inches from the camera to infinity
|
|
S/N
Ratio
|
≥46dB
|
|
Scanning
System
|
2:1
Interlace
|
|
Sync
System
|
Inner
Sync
|
|
Power
Consumption
|
DC12V
75mA
|
|
Video
Output
|
BNC
(1.0Vp-p/75ohm)
|
|
Operation
Environment
|
Temp:
-20 C to 60 C; RH: 95% Max.
|
|
Weight
|
P/N:
ESC-HA001-BL: 141g / P/N: ESC-HA001-PL: 120g
|
|
Dimension
|
P/N:
ESC-HA001-BL: Ø20mm
x L76mm / P/N: ESC-HA001-PL: Ø20mm
x L60mm
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Camera,
AC/DC
12V Power Supply, Manual, Complete Mount Bracket Set, Operation Guide
|
