General
Specification
|
| Item# |
ETR-004
|
| Operating
Frequency: |
5.725
GHz - 5.875 GHz |
| User
Selectable Channels: |
8
User Selectable Channels |
| Radiated
Power: |
50mV/m
@ 3m |
| Operating
Distance Line of Sight: |
Up
to 1,000 feet |
| Operating
Distance Indoors: |
Up
to 300 feet |
| Range
with Optional Rx Antenna: |
Up
to 1 Mile with Optional 14dB Gain Antenna |
| Video
Format: |
NTSC
or PAL |
| Antenna
Type: |
Omni-directional
Rubber Duck |
| Antenna
Connector: |
SMA
Female |
| Video
Connector Format: |
BNC
Female |
| Video
Impedance & Level: |
75
Ohms @ 1 Volt Peak to Peak |
| Audio
Connector Format: |
One
Left and One Right RCA Female |
| Audio
Impedance & Level: |
600
Ohms @ 1 Volt Peak to Peak |
| Temperature
Range: |
-22
F to +150 F |
| Weather
Proof: |
No |
| Operating
Voltage: |
8
- 32V DC, Polarity Protected |
| Power
Supply: |
Two
x PS-1250 (Included) |
| Current
Consumption: |
Transmitter:
140mA @ 12 VDC / Receiver: 170mA @ 12VDC |
| Dimensions: |
7.4"
x 4.2" x 1.2" |
| Weight: |
441g
or 15.5oz |
| FCC/IC
Approved: |
FCC/IC
& CE Approved |
| Mounting
Slots |
Permanent
mounting to wall / ceiling / desktop |

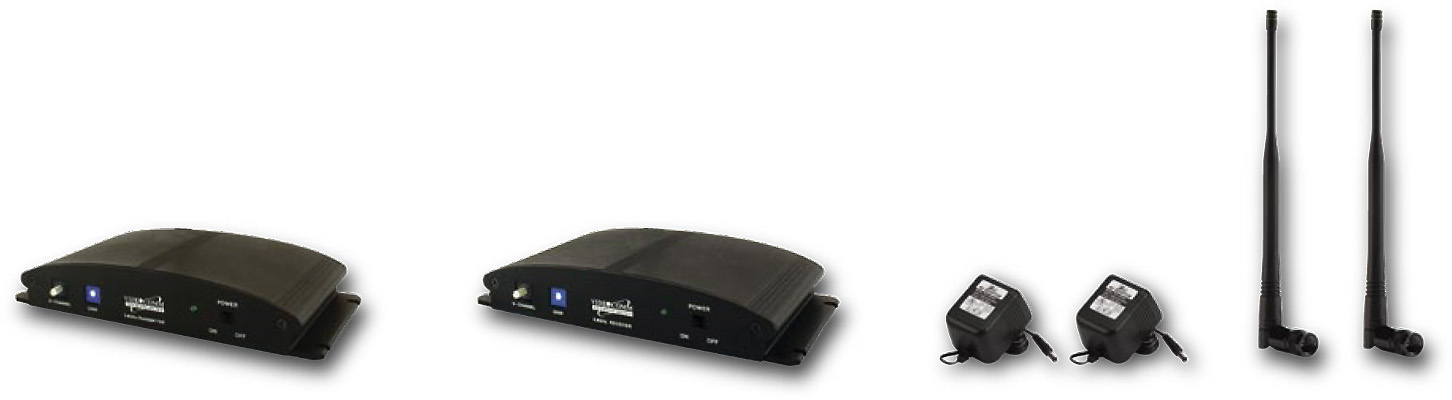

| Includes |
 12V-500mA AC/DC Power Adaptor (x2), 3dBi Omni Antenna (x2), BNC Male to RCA Female Converter (x2), A/V Cable, Printed Owner’s Manual |
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart.
http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.EZspyCam.com/Download/SP-ETR-004.pdf
|
 |
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.EZspyCam.com/Download/MN-ETR-004.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
