General
Specification
|
| Item# |
EWC-002
|
| Description |

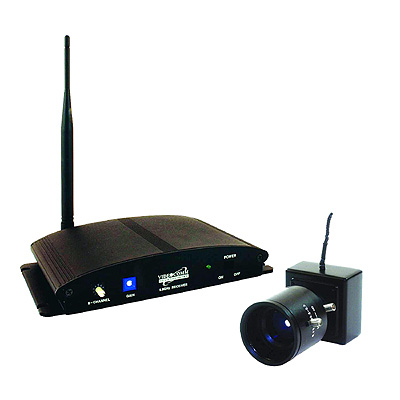

5.8GHz
8CH Wireless Covert Video Surveillance Kit w/ 4-8mm Varifocal
Micro Camera |
| Operating
Frequency |
5.725GHz
- 5.875GHz |
| Channels |
8
User Selectable Channels |
| Radiated
Power |
50
mV / m @ 3m |
| Operating
Distance |
Up
to 1000 Feet (Line of Sight)
/ Up to 300 feet (Indoors) |
| Video
Format |
NTSC |
| Antenna
Type |
Fixed
Omni Directional |

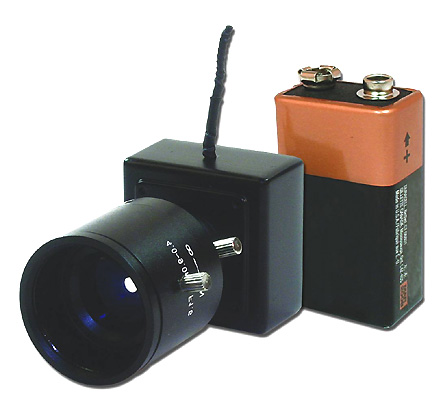

| Image
Sensor |
Color
1/3" Sony CCD |
|
Lens
|
4~9mm Vari-Focal
Manual Zoom Lens
|
|
Viewing
Angles
|
Refer the above pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm
|
| Resolution |
420
TV Lines |
| Mini.
Illumination |
1.0
LUX |
| Temperature
Range |
-22F
to + 140F |
| Weather
Proof |
No |
| Operating
Voltage |
9
- 14 Volts DC, Polarity Protected |
| Power
Supply |
Included |
| Current
Consumption |
Less
than 150mA @ 12VDC |
| Dimensions |
1.1"
x 1.3" x 1.3" with lens |
| Weight |
80g
or 2.8oz |
| Approved |
FCC
/ IC / CE |

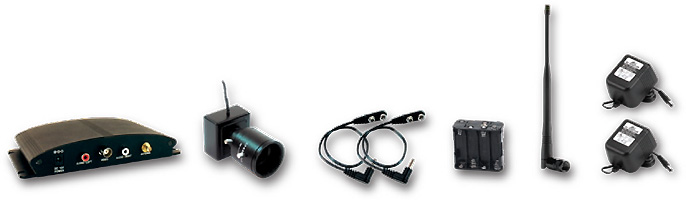

| Includes |
 Metal Mounting Bracket, 9V DC Power Supply, 9V DC Snap
Cable, AA Battery Pack Holder, 12V-500mA AC/DC Power Adaptor (x2), 3dBi
Receiver Duck Antenna, BNC Male to RCA Female Converter, Printed Owner’s
Manual) |
|
Radio
Frequency Interferences...
|
|
As
we all know publically, sharing radio frequencies that are
considered part of the public band. We do not have entitlement and
must accept interference if it exists.
Followings are home electronic devices that are most likely
produce interferences and it would the best to prevent
interferences if your wireless video device is installed at least
5 ~ 10ft away from them.
Example: Other 2.4GHz or 5.8GHz video transmitters in the area,
802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data
transceivers, wireless bar code readers, blue tooth devices, and
Microwave ovens, etc.
|
 |
*To
download the step-by-step instruction manual, please request it via
following email, support@EZspyCam.com
along with your order ID# or Invoice#.
|
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
|
