Item#
- Description
|
EWM-003N
- 2.4GHz
4-CH Complete Wireless Home Security Alarm System w/ No
Camera
|
|
Item#
- Description
|
EWM-003F
- 2.4GHz
4-CH Complete Wireless Home Security Alarm System w/ 1-Cam
Set
|
|
Item#
- Description
|
EWM-003A
- 2.4GHz
4-CH Complete Wireless Home Security Alarm System w/ 2-Cam
Set
|
|
Item#
- Description
|
EWM-003B
- 2.4GHz
4-CH Complete Wireless Home Security Alarm System w/ 4-Cam
Set
|
|
Features
|
-
Global
leading operation of wireless alarm and motion detection
recording.
-
Adopt
2.4G wireless transmission surveillance image signal.
-
Up
to 4 wireless cameras can be used indoor or outdoor.
-
Support
all around with multiple types of sensors including infrared
sensor, door contact sensor, vibration sensor, and microwave
sensor.
-
Sensor
8 guard zones.
-
Arm/disarm
via the main unit or arm/disarm and emergency alarm by remote
control.
-
Remote
arm/disarm and listening function works with telephone set.
-
Both
Audible alarm and silent alarm.
-
Six
groups of preset telephone numbers for alarm, and automatic
dialing of alarm call.
-
Delayed
arm and delayed alarm function.
-
Simultaneous
display of alarm signals of multiple zones.
-
Highly
intergraded embedded recording system.
-
SD
card, automatic overwriting, cyclic recording, featuring low cost,
energy saving, and vibration prevention.
-
Permanent
saving of recording data and alarm setting data after a power
failure.
|
|
DVR
Alarm System Specification
|
|
Operating
Voltage
|
12VDC
999mA
|
|
Power
consumption
|
4.7W
|
|
Operating
Temperature
|
-10º
-
+49º
|
|
Screen
|
2.7
inch TFT LCD
|
|
Operating
humidity
|
<85%
|
|
Video
out format
|
PAL/NTSC
CVBS
|
|
Video
out level
|
1Vp-p
|
|
Video
out impedance
|
75Ω
|
|
Memory
Capacity
|
External

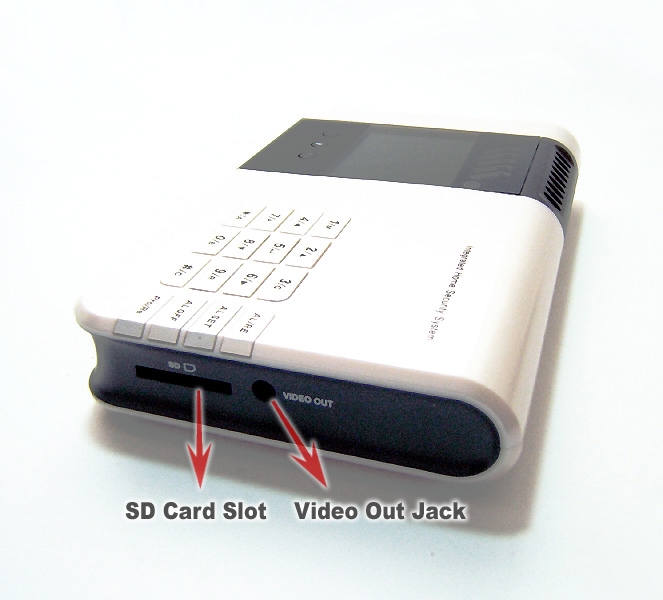

SD Card Slot support up to 32GB (2GB included)
|
|
Single-cycle
recording time
|
6.8hrs
on one cycle of the continuous recording & 10 ~ 300hrs when
recording under motion activation mode.
|
|
Single-cycle
shooting time
|
24000
|
|
Recording
format
|
M-JPEG，320x240
|
|
Shooting
format
|
JPEG，640x480
|
|
Wireless
Detector Specification
|
|
Operating
Voltage
|
3V，2pcs“AA”
Alkaline battery
|
|
Quiescent
current
|
≤25uA
|
|
Alarm
current
|
≤15mA
|
|
Battery
life
|
One
year
|
|
Working
temperature
|
-20º
- +50º
|
|
Transmitting
frequency
|
315Mhz
or 433MHz
|
|
Encoded
type
|
2262/1527/Rolling
code
|
|
Transmitting
distance
|
260
~ 330ft (80-100m) in Line
of Sight
|
|
Weatherproof
Wireless Camera specification
|
|
Sensor
|
1/4
inch Sharp Color CCD
|
|
Working
voltage
|
12V
DC
|
|
Consumption
current
|
<150mA
|
|
Working
temperature
|
-10º
- +50º
|
|
Transmitting
frequency
|
ISM
2,400MHz ~ 2,483MHz
|
|
Transmitting
distance
|
260
~ 330ft (80-100m) in Line
of Sight
|
|
Camera
pixel
|
512
x 582 (PAL) / 512 x 492 (NTSC)
|
|
View
Angle
|
39
degree
|
|
IR
LED
|
850nm
Strong LED
|
|
Night
Visibility
|
15M
|
|
Parts
Included...*Specifications, parts, design may can be
modified without prior notice.
|
|
2GM
Memory, 1

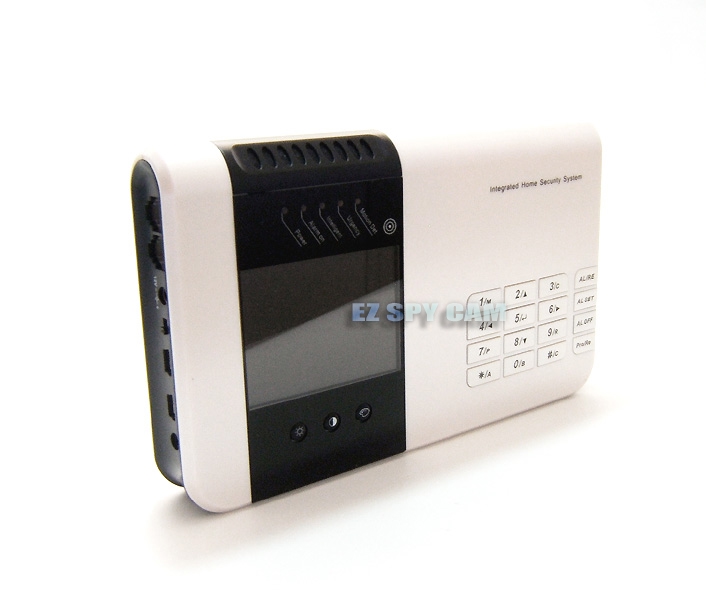

Alarm System w/ Built-in LCD Monitor / 0, 2, or 4 Wireless Cameras
(Optional) / 2 Remote Control Units / 1 Door Magnetic Sensor / 1 Motion
Detector IR Sensor
|
|
Radio
Frequency Interferences...
|
|
As
we all know publically, sharing radio frequencies that are
considered part of the public band. We do not have entitlement and
must accept interference if it exists.
Followings are home electronic devices that are most likely
produce interferences and it would the best to prevent
interferences if your wireless video device is installed at least
5 ~ 10ft away from them.
Example: Other 2.4GHz or 5.8GHz video transmitters in the area,
802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data
transceivers, wireless bar code readers, blue tooth devices, and
Microwave ovens, etc.
|
