Order Q'ty >

Q'ty 1+

Q'ty 2+

Q'ty 10+

Q'ty 50+

Each Price >

US$111.00

US$103.60

US$96.20

US$85.10

Item#

ECC-600

Image Sensor

Sony 1/3" Color CCD

Signal System

NTSC for USA, Canada, Asian countries etc...

Lens

3.6mm Fixed Board Lens (FOV: 92º Diagonally)

Viewing Angles

Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm

Day Visibility

3 inches from the camera to infinity.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm

Video Resolution

420 TVL (270K pixel)

Video Out Signal

Composite Video: 1.0V p-p

Video In Connector

BNC Jack

Power Consumption

DC 12V±1V / 120mA

Minimum Illumination

1.0 LUX - Day Time

Weight / Dimension

3oz (85gr) - Camera only / L4.02" x W2.28" x D1.26" (L102 x W58 x D32mm)

Operating Temp

-5ºC ~ 40ºC (23ºF ~ 104ºF) / RH95% Max

Electronic Shutter

1/60~1/100,000/Sec

Special Feature

Auto White Balance (AWB) / Auto Gain Control (AGC)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

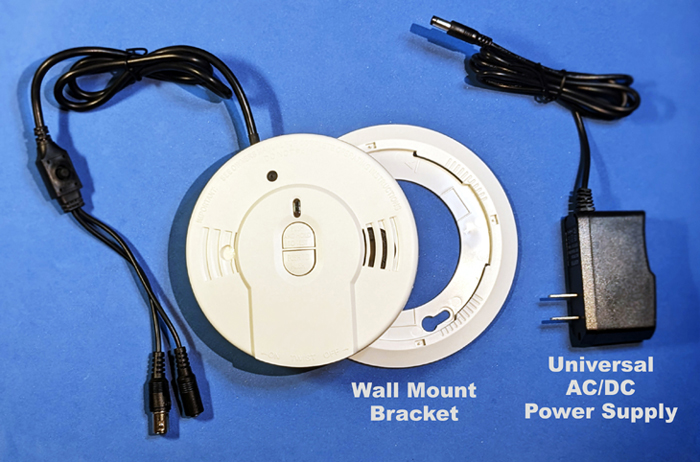

AC/DC 12V–300mA Power Supply; Installation Guide; Spec Sheet

Special Instruction

*This camera never should be installed outdoor and exposed under heavy storm or harsh raining environment, unless it is encased or insulated completely with waterproof materials.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.ezspycam.com/PG-CorverMicroCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.ezspycam.com/IG-SmokeDetector.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
