Item#
|
EIP-EPC-601A
---Preorder to built in house & ships out within
3 ~ 4 weeks---
|
|
Description
|
HawkEye
All Weather Network IP Mobile PTZ Camera
|
|
Item#
|
EIP-EPC-601APOE
---Preorder to built in house & ships out within
3 ~ 4 weeks---
|
|
Description
|
HawkEye
All Weather Network IP Mobile PTZ Camera w/ POE
option
|
|
Specification
|
|
Sensor
|
1/3"
Sony IMX335 CMOS + HI3516D
|
|
Resolution
|
5 Megapixels
or above (Adjustable from 2MP via CMS or NVR)
|
|
Effective Pixels
|
2592(H)x 1944(V)
|
|
TV
System
|
NTSC
or PAL (Switchable)
|
|
Synchronization
|
Internal
|
|
Zoom
Ratio
|
x30
Optical or above
|
|
Focus Range
|
Focus Distance - 1 inch when Manual or One Push Focus Mode / 1.0m (3.3ft)
when Auto Focus Mode
|
|
Lens
Focus
|
Auto, Manual, or One Push Selectable
|
|
Aperture
Ratio
|
F1.6 (Wide) ~
F3.5
(Tele)
|
|
Focal
Length
|
f
4.7mm
(Wide) ~ f 94mm
(Tele)
|
|
Iris
Control
|
Auto
or Manual Selectable
|
|
Lens
Initialization
|
Built-in
|
|
Orientation
|
Flipping
image adjusted via Dip Switch setting for installing the camera
downward or upward
|
|
BLC
|
Back
Light Compensation - Low / Middle / High / Off Selectable
|
|
Day/Night
|
Color
/ Auto 1 / Auto 2 / B&W (ICR Filter Change)
|
|
Nightvision
|
Ultra
Long Rang Infrared LED - 50M Range
|
|
ESS
|
Electronic
Shutter Speed -
Auto
/ Manual Selectable (1/60 ~ 1/120,000)
|
|
Gain
Control
|
Normal
/ High / Off Selectable
|
|
DSS
|
Digital
Slow Shutter - On / Off (Selectable Limit ~ 128x)
|
|
DNR
|
Digital
Noise Reduction - Low / Middle / High / Off Selectable
|
|
WB
|
White
Balance - ATW / AWC / Manual Selectable (1,800ºK
~ 10,500ºK)
|
|
Min.
Illumination
|
0.05
Lux - Color & 0.01 Lux -
BW / DDS Mode: 0.001 Lux - Color & 0.0004 - BW
|
|
S/N
Ratio
|
Over
50dB (AGC off, Weight on)
|
|
Communication
Protocol
|
Pelco
D / Pelco P
|
|
Network
Protocol
|
IPv4,
IPv6, HTTP, HTTPS, SSL, TCP, IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP,
RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS
|
|
Main stream resolution
& Frame rate
|
*50Hz:30Fps(2592*1944),25fps(1280*960)
*60Hz:30fps(2592*1944),30fps(1280*960)
|
|
Bit Rate
|
H.264:56K ~ 8192Kbps, MJPEG: 56K ~20480Kbps
|
|
ONVIF
|
ONVIF Ver.2.0 conformance
|
|
Compatible
Potable Device
|
iPhone,
iPad, Android, Windows Phone
|
|
Up stream resolution
& Frame rate
|
*50Hz:25fps(704×576),
25fps
(352×288), 25fps (320×240)
*60Hz:30fps (704×480),
30fps
(352×240), 30fps (320×240)
|
|
Video Compression
|
H.264
/ MJPEG
|
|
Video Preview
|
Maximum 20
Channels simultaneously
|
|
User Permission
|
Maximum 32
users
|
|
Safety mode
|
Authorized user and password
|
|
Network interface
|
Built in RJ45 network port
|
|
Client
|
Support iVMS-4200,
CMS, UC
|
|
Compatible
Browser
|
Support5 IE7+,Chrome18+
,Firefox5.0+,Safari5.02+
|
|
Baud
Rate
|
2400 ~
9,600bps Automatically detected
|
|
Pan
Range
|
Pan:
0
- 360º
(Endless)
|
|
Pan
Speed
|
0.1º
~ 240º/Sec (Adjustable)
|
|
Tilt
Range
|
-5º
~ 90º/Sec
|
|
Tilt
Speed
|
-0.1º ~ 180º/sec (Adjustable)
|
|
OSD
|
All
possible camera function settings
|
|
Auto
Swing
|
Auto
swing MAX. 4 Pan Swing (2 Position Swing)
|
|
Special
Function
|
256
Preset positions, 8 Tours, 4 Scan, 4 Area, 4 Pattern, 2 Alarm,
Auto scan
|
|
Privacy
Function
|
Max.
4 Programmable Zones
|
|
Camera
ID
|
Addressable
from 0 ~ 255
|
|

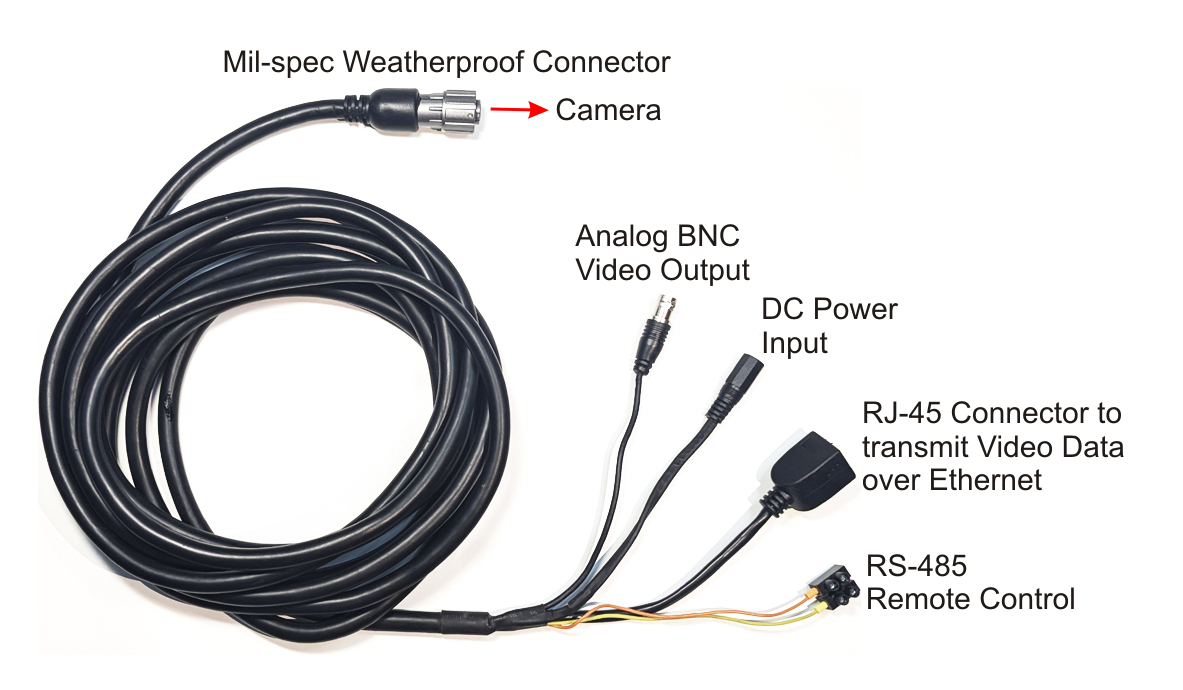

Interface
for Standard version
|
RJ-45
Jack Connector to transmit Video Data / DC Input Connector /
Analog 1Vp-p Composite BNC Video Output (75Ω/BNC)
|
|

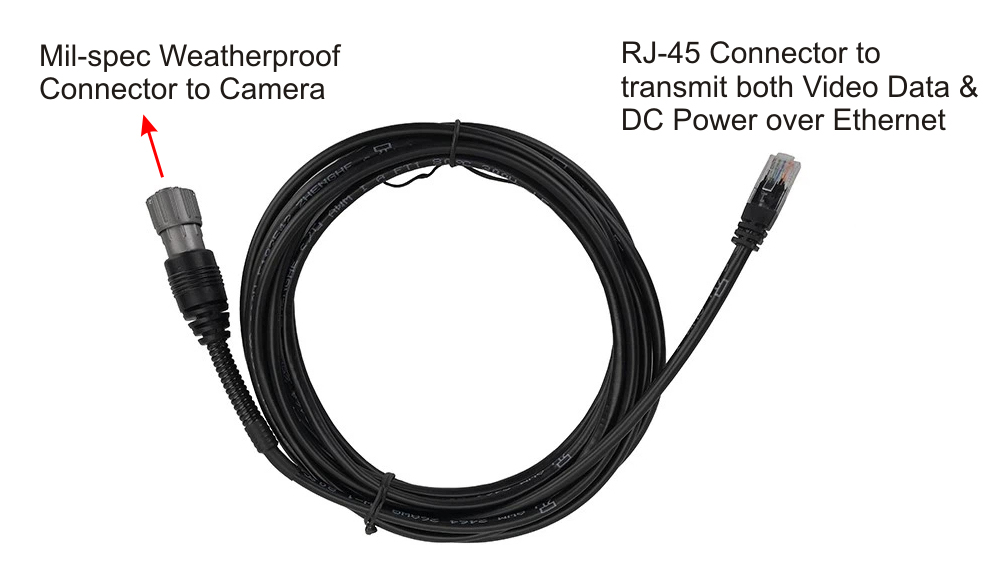

Interface
for POE version
|
RJ-45
Plug Connector to transmit both Video Data & DC Power
|
|
Fan
& Heater
|
Built-in
- 42W
|
|
Power
Consumption
|
DC12V
(+/- 10%) 50W
|
|
Operating
Temp
|
-20ºC
~ 65ºC / -4ºF ~ 149ºF (When Fan & Heater On)
|
|
Humidity
|
0
to 90%
|
|
Certification
|
CE,
FCC, RoHS
|
|
Dimension
/ Wg't
|
Ø120mm x
H207mm (4.7" x 8.15") / 5Kg (11LBS)
|
|
Protection
Level
|
IP-66
(Dust tight & Water resisted)
|
|
Housing
Material / Color
|
Aluminum
Alloy w/ UV Resistant Paint Coated / Beige or Black whichever
available
|
|
Camera
Set Includes
|
PTZ Camera, Connection Cable Set,
Shock Absorb Dual Rooftop & Ceiling Mount, Universal AC/DC
12V Power Supply (Not included with POE version),
& Instruction Manual
|
