Our Price $30 off >

US$219.00

Regular Price >

US$249.00

Item#

ENC-700

Description

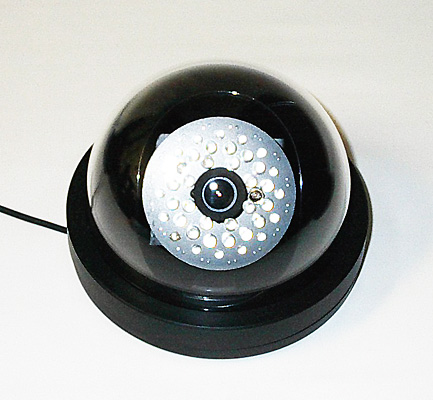

Day Color Invisible Night Vision Dome Camera w/ 40ft Night Visibility

Image Sensor

Sony 1/3" Super HAD Color CCD

Applicable Lens

Selection from 4.3mm Board Lens Size

Viewing Angles

Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

LED

40 Invisible 950NM IR LEDs (Life span - Appx. 20,000hrs)

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Night Visibility

40ft in the total darkness when LEDs are turned on.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Day Visibility

3 inches from the camera to infinity.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Video Resolution

400 TVL (270K pixel)

Video Out

1Vp-p Composite Video 75 ohms

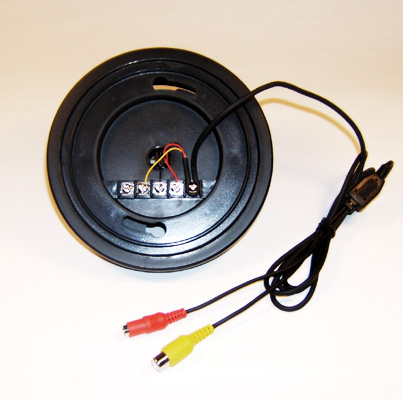

Video Connector

RCA Jack

Minimum Illumination

0.01 LUX in Color (Daytime) / 0.000 LUX in B&W (Night)

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Luminance S/N Ratio

Over 48dB

Special Feature

Auto Gain Control (AGC) / Auto Backlight Compensation / Auto Backlight Compensation

Weight / Dimension

1.1LBS (500g) / Ø120x100mm (Ø5.90”x5.70”)

Power Consumption

DC12V±10% (350mA)

Operating
Temperature

0ºC ~ 40ºC (32ºF ~ 104ºF) ; Humidity - 10%RH ~ 80%RH

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Metal Mounting Bracket Set; Removable Sunshield; AC/DC 12V–500mA Power Supply; Installation Guide; Spec Sheet

*This camera never should be installed outdoor and exposed heavy moisture wet environment for long period.

*Click the following link or paste it to you web browser to make sure to review a proper way to purchase suitable equipments for your application.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NV-DomeCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
