General
Specification
|
| Item# |

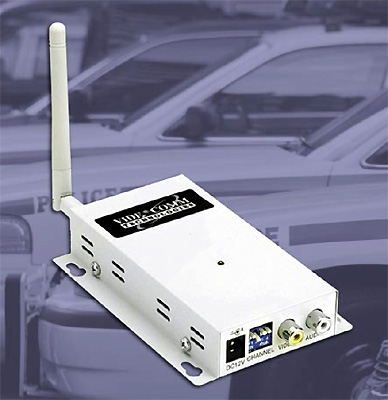

ERX-003
|
| Operating
Frequency: |
2.4108
- 2.4728 GHz |
| User
Selectable Channels: |
4
User Selectable Channels |
| Video
Format: |
NTSC
or *PAL (Optional) |
| Antenna
Type: |
3dB
Fixed Directional Patch |
| Antenna
Connector: |
None |
| Operating
Distance: |
Up
to 800ft |
| Video
Connector Format: |
RCA
- Female |
| Video
Impedance & Level: |
75
Ohms @ 1 Volt Peak to Peak |
| Audio
Connector Format: |
RCA
- Female |
| Audio
Impedance & Level: |
600
Ohms @ 1 Volt Peak to Peak |
| Temperature
Range: |
-22
F to +150 F |
| Weather
Proof: |
No |
| Operating
Voltage: |
12
- 14V DC, Polarity Protected |
| Power
Supply: |
PS-1250
(Included) |
| Current
Consumption: |
350mA
@ 12 Volts DC |
| Dimensions: |
4.5"
x 7.25" x 2.0" |
| Weight: |
350g
or 12.3oz |
| FCC/IC
Approved: |
Yes |
| Weight |
12.8oz
or 363g |

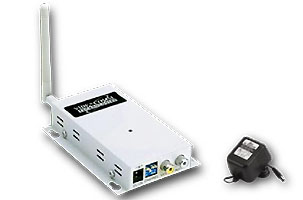

| Includes: |
 2.4GHz Rubber Duck Knuckle Antenna, 12V-500mA AC/DC Power Adaptor, Printed Owner’s
Manual. |
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart.
http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.EZspyCam.com/Download/SP-ERX-003.pdf
|
 |
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.EZspyCam.com/Download/MN-ERX-003.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
