General
Specification
|
| Item# |

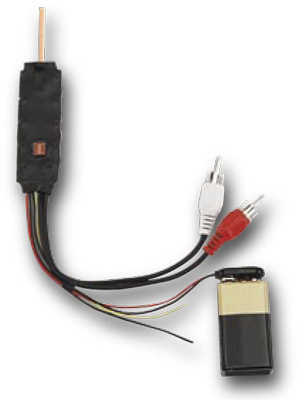

ETX-002
|
| Frequency: |
2.4108
- 2.4728 GHz |
| User
Selectable Channels: |
4
User Selectable Channels |
| Radiated
Power: |
50mV/m
@ 3m |
| Operating
Distance: |
Up
to 800ft |
| Video
Format: |
NTSC
or PAL |
| Antenna
Type: |
Fixed
Omni-Directional |
| Antenna
Connector: |
None |
| Video
Connector Format: |
RCA
- Male |
| Video
Impedance & Level: |
75
Ohms @ 1 Volt Peak to Peak |
| Audio
Connector Format: |
RCA
- Male |
| Audio
Impedance & Level: |
600
Ohms @ 1 Volt Peak to Peak |
| Temperature
Range: |
-30
F to +170 F |
| Weather
Proof: |
No |
| Operating
Voltage: |
8
- 14 Volt DC, Polarity Protected |
| Power
Supply: |
PS-1250
(Included) |
| Current
Consumption: |
45mA
@ 12 Volts DC |
| Dimensions: |
1"
x 2.5" x 0.25" |
| Weight: |
1.3oz
or 37g |
| FCC/IC
Approved: |
Yes |
| Includes |
 AA
Battery Pack Holder, 12V-500mA AC/DC Power Adaptor, Printed Owner’s
Manual |
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart.
http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.EZspyCam.com/Download/SP-ETX-002.pdf
|
 |
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.EZspyCam.com/Download/MN-ETX-002.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
