| Item# |
ETR-003
|
| Description |

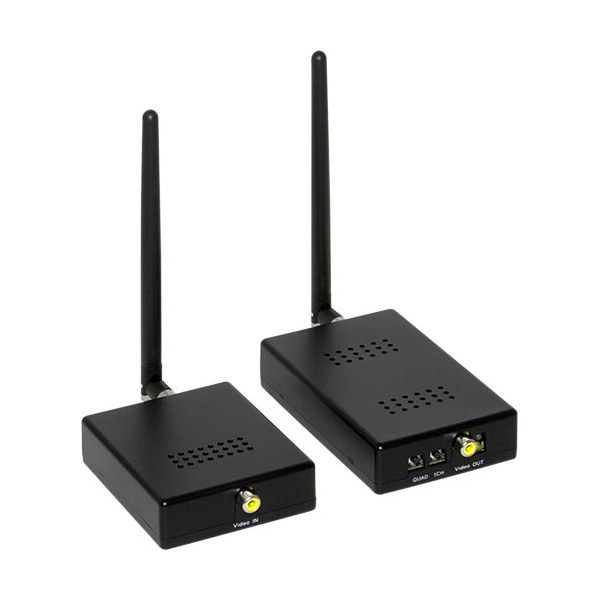

2.4GHz
Digital Wireless Video Transmitter & Receiver Kit |
| Digital
Wireless Video Transmitter |
| Video
Compression |
MPEG-4
Standard |
| Video
Resolution |
704x480 |
| Transmission
Range |
up
to 300ft |
| Framed
Rate |
D1 :
30fps |
| Frequency
of Operation |
2.4GHz |
| Output
Power |
10dBm(10mW/MHz) |
| Receiver
Sensitivity |
-85dBm |
| Modulation
Format |
QPSK |
| Distance(2dB
Antenna) |
100m(Open
Sight) |
| Security |
Unique
Scramble Algorithm |
| Power
Consumption |
12V±10%
DC, 700mA |
| Operation
Temperature |
5°C~+40°C,
RH95% Max |
| Dimension |
85(W)x25(H)x73(D)
mm |
| Digital
Wireless Video Receiver |
| Video
Decompression |
MPEG-4
Standard |
| Video
Resolution |
704x480 |
| Transmission
Range |
up
to 300ft |
| Frame
Rate |
D1
:30fps |
| Frequency
of Operation |
2.4GHz |
| Output
Power |
10dBm(10mW/MHz) |
| Receiver
Sensitivity |
-85dBm |
| Demodulation
Format |
QPSK |
| Distance(2dB
Antenna) |
100m(Open
Sight) |
| Security |
Unique
Scramble Algorithm |
| Video
Output |
RCA
Jack Type, CVBS |
| Power
Consumption |
12V±10%
DC, 700mA |
| Operation
Temperature |
5°C~40°C,
RH95% Max |
| Dimension |
114(W)x25(H)x70(D)
mm |
| Includes |
Tx
& Rx Set, AC/DC Power Adapters, Omni Antennas, Instruction Manual |
 |
*
Click
the left photo to download and review
Frequency Comparison Chart.
|
 |
*
Click
the left photo to download and
review Samples of Installation Plan.
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
|
