916MHz High Power Desktop Video TX 2000ft Range

916MHz High Power Desktop Video TX 500ft - Punching video through walls

Ideal for punching video through walls or other objects when running cable is not possible, economical or convenient. Larger than it's "shrink wrap" cousin, the transmitter is mounted in a metal case for improved EMI / RFI shielding and include a Rubber duck antenna to ensure a robust RF signal. Choose one of two fixed frequencies for applications ranging from surveillance to remote monitoring.

Order Q'ty >	Q'ty 1+	Q'ty 2+	Q'ty 10+	Q'ty 50+
Each Price >	US$442.50	US$413.00	US$383.50	US$339.25

General Specification
Item#	ETX-003
Operating Frequency:	916 MHz
User Selectable Channels:	None
Antenna Type:	Omni-Directional Rubber Duck
Video Format:	NTSC
Radiated Power:	250mW
Connector Format:	Video Input - RCA Female @ 75 ohms - 1.0 Volt P-P
Operating Temperature Range:	-22 F to 140 F
Operating Voltage:	9 - 14 Volts DC, Polarity Protected
Power Supply:	PS-1250 (Included)
Current Consumption:	80mA @ 12V DC
Dimensions:	2.5" x 1.5" x 0.6"
Receiver Included:	Not Included
FCC / IC Approved:	Yes
Weight	99g or 3.5oz

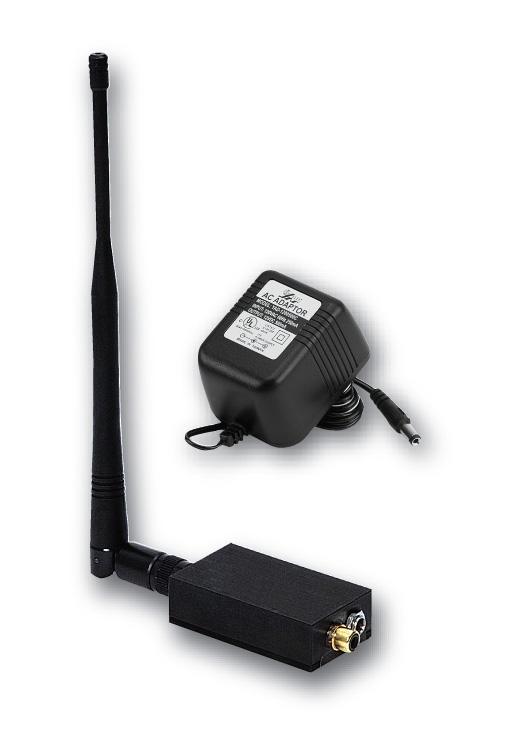

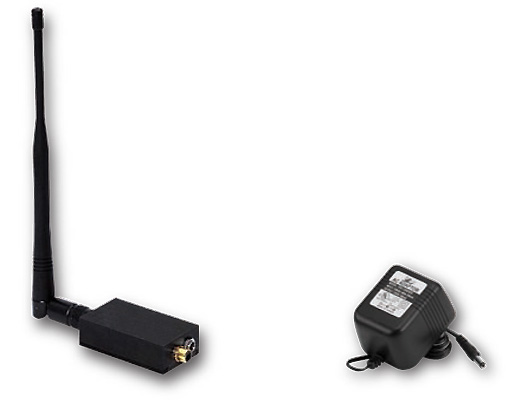

Includes	3dBi Rubber Duck Antenna, 12V-500mA AC/DC Power Adaptor, Printed Owner’s Manual
	* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf * Click the following link or paste it to you web browser to review Detailed Specification. http://www.EZspyCam.com/Download/SP-ETX-003.pdf
	Click the following link or paste to your web browser to make sure to review Installation Guide. http://www.EZspyCam.com/Download/MN-ETX-003.pdf Click the following link or paste to your web browser to review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf 1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
