General
Specification
|
| Item# |
ERX-002
|
| Description: |
Super

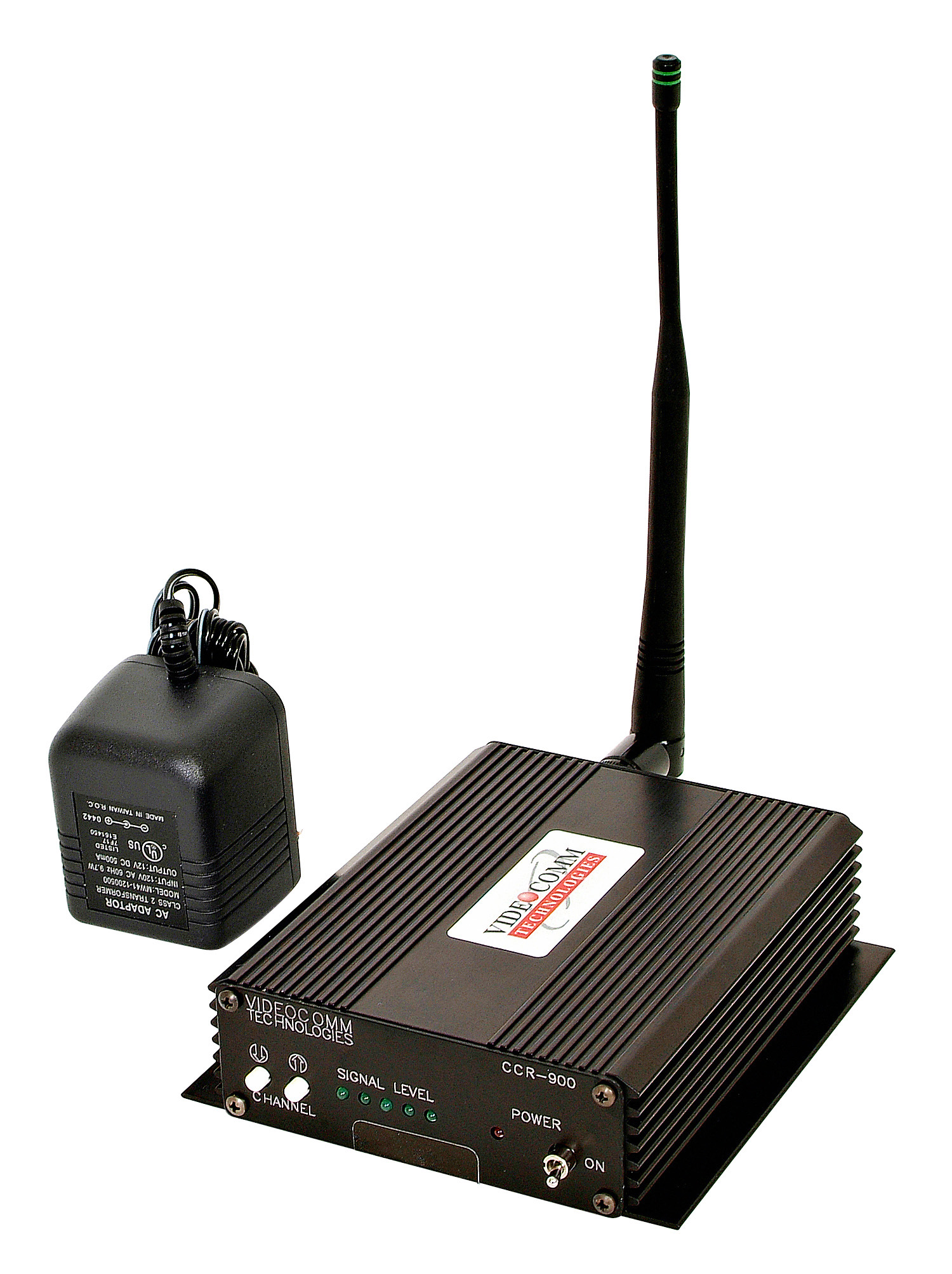

Penetration Power 900Mhz A/V Receiver |
| Operating
Frequency: |
895MHz
to 934Mhz Micro-Processor Controlled PLL |
| User
Selectable Channels: |
User
Selectable @ 62.5KHz increments |
| Operating
Distance: |
Up
to 500ft |
| Video
Format: |
NTSC |
| Antenna
Type: |
6"
Omni-directional Rubber Duck - TNC -Male |
| Antenna
Connector: |
TNC
- Female |
| Video
Connector Format: |
BNC
Female |
| Video
Impedance & Level: |
75
Ohms @ 1 Volt Peak to Peak |
| Audio
Connector Format: |
RCA
- Female |
| Audio
Impedance & Level: |
600
Ohms @ 1 Volt Peak to Peak |
| Temperature
Range: |
-22
F to +150 F |
| Weather
Proof: |
No |
| Operating
Voltage: |
6.4
- 24V DC, Polarity Protected |
| Power
Supply: |
PS-1250
(Included) |
| Current
Consumption: |
200mA
@ 6.4 Volts DC, 70mA @ 24 Volts DC |
| Dimensions: |
5.37"
x 4.25" x 1.44" |
| Weight: |
416g
or 14.7oz |
| FCC/IC
Approved: |
Yes |
| Special
Feature: |
Convenient
Signal Strength Indicator |

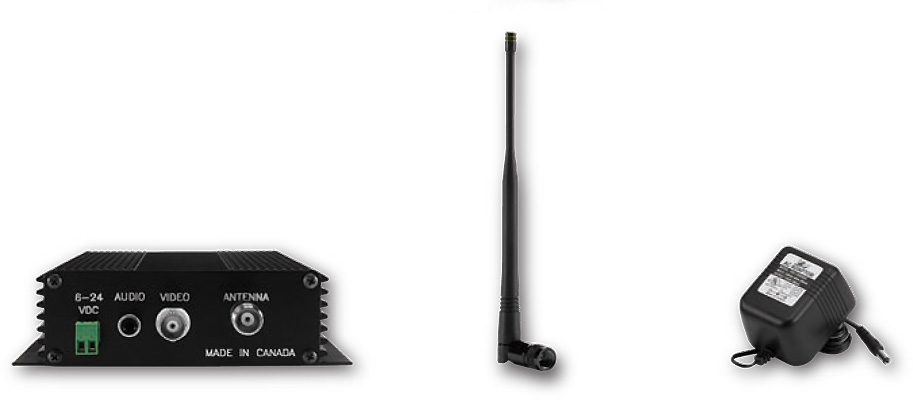

| Includes: |
 900MHz Rubber Duck Knuckle Antenna, 12V-500mA AC/DC Power Adaptor, Printed Owner’s
Manual. |
 |
*To
download the latest instruction manual, firmware, or software, please request it via
following email, support@EZspyCam.com
along w/your order ID# or Invoice#.
|
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart.
http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
