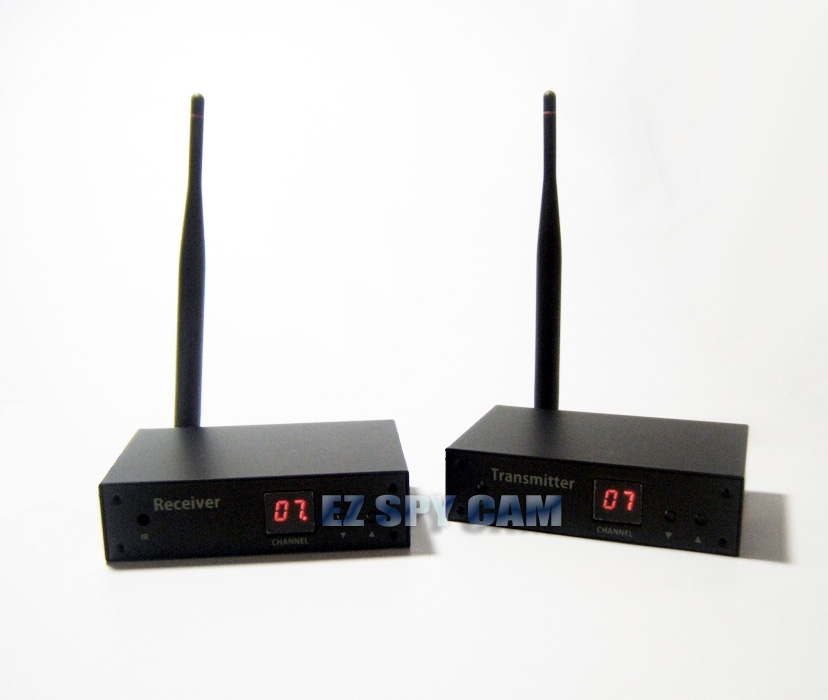

Item#
|
ETR-008A
|
|
Description
|
5.8GHz
7CH Wireless A/V Transmitter & Receiver Kit
|
|

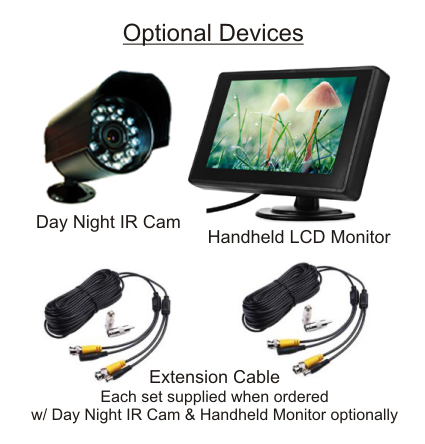

Item#
|
ETR-008B
|
|
Description
|
5.8GHz
7CH Wireless A/V Transmitter & Receiver Kit + Day Night IR Cam
|
|
Item#
|
ETR-008C
|
|
Description
|
5.8GHz
7CH Wireless A/V Transmitter & Receiver Kit + 4.3"
Portable LCD Monitor
|
|
Item#
|
ETR-008D
|
|
Description
|
5.8GHz
7CH Wireless A/V Transmitter & Receiver Kit + 4.3" LCD
Monitor + IR Cam
|
|
Specification
|
|
Transmitter:
|
|
Operation
Frequency
Range
|
5.725
- 5.875 GHz, 7 User Selectable Channels
|
|
Video
Signal
|
NTSC
and PAL
|
|
Channel
Display
|
1
: 5.740 GHz, 2 : 5.760 GHz, 3 : 5.780 GHz, 4 : 5.800 GHz, 5 :
5.820 GHz, 6 : 5.840 GHz, 7 : 5.860 GHz
|
|
Display
|
Digital
LED Display
|
|
Channel
Setting
|
By
Tact Switch
|
|

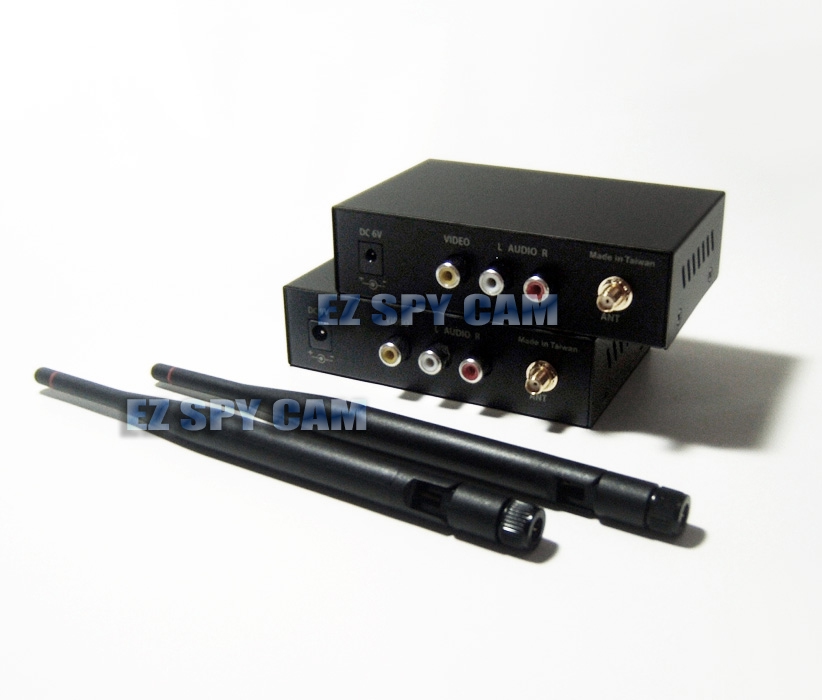

Audio
/ Video Connector
|
RCA
connector
|
|
Antenna
Connector
|
SMA
Female
|
|
Memory
Function
|
Full
channel memory during power interruptions
|
|
Video
Modulation Type
|
FM
|
|
Audio
Modulation Type
|
FM
- FM
|
|
Temperature
range
|
-10
~ +60°C
|
|
Dimension
|
3.4(L)
× 4.6(W × 1.3(H) inch / 86(L) × 118(W) × 32(H) mm
|
|
Supply
Voltage
|
DC
6V
|
|
Supply
Current
|
800mA
|
|
Video
Input Signal Level
|
1Vp-p,
±0.2V @ 75Ω
|
|
Audio
Input Level
|
2Vp-p
@ 10KΩ
|
|
Antenna
Gain
|
5
dBi
|
|
Receiver:
|
|
Range
|
5.725
- 5.875 GHz, 7 User Selectable Channels
|
|
Video
Signal
|
NTSC
and PAL
|
|
Channel
Display
|
1
: 5.740 GHz, 2 : 5.760 GHz, 3 : 5.780 GHz, 4 : 5.800 GHz, 5 :
5.820 GHz, 6 : 5.840 GHz, 7 : 5.860 GHz 6 : 5.840 GHz
7 : 5.860 GHz
|
|
Display
|
Digital
LED Display
|
|
Channel
Setting
|
By
Tact Switch
|
|
Input
Signal
Level
Range
|
-10
dBm ~ -85 dBm
|
|
Audio
/ Video Connector
|
RCA
connector
|
|
Antenna
Connector
|
SMA
Female
|
|
Memory
Function
|
Full
channel memory during power interruptions
|
|
Video
Modulation Type
|
FM
|
|
Audio
Modulation Type
|
FM
- FM
|
|
Temperature
range
|
-10
~ +60°C
|
|
Dimension
|
3.4(L)
× 4.6(W × 1.3(H) inch / 86(L) × 118(W) × 32(H) mm
|
|
Supply
Voltage
|
DC
9V
|
|
Supply
Current
|
300mA
|
|
Video
Input Signal Level
|
1Vp-p,
±0.2V @ 75Ω
|
|
Audio
Input Level
|
2Vp-p
@ 10KΩ
|
|
Antenna
Gain
|
5
dBi
|
|
Parts
Included
|
Transmitter
unit w/ DC Power Adapter, Receiver unit w/ DC Power Adapter, 2x Omni
Directional Rubber Duck Antennas, Instruction Manual
|
 |
*
Click
the left photo to download and review
Frequency Comparison Chart.
|
 |
*
Click
the left photo to download and
review Samples of Installation Plan.
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
