Item#
|
EUC-2015
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|

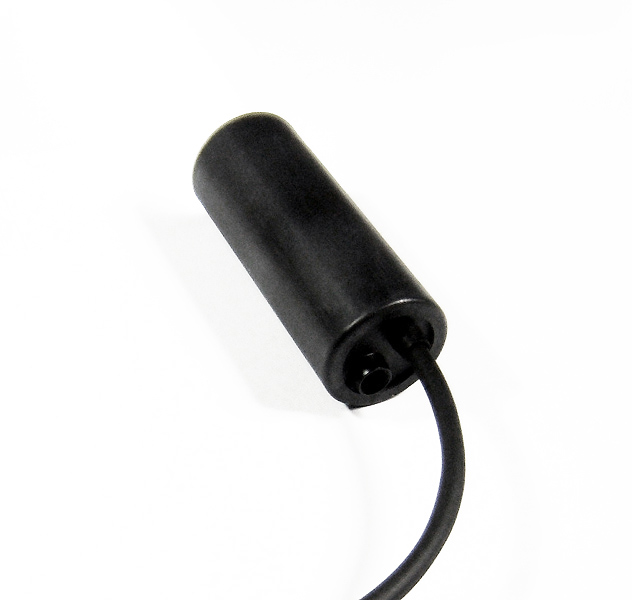

Snake Head Underwater Video
Camera w/ White LED on 50ft
Cable
|
|
Item#
|
EUC-2030
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ White LED on 100ft
Cable
|
|
Item#
|
EUC-2045
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ White LED on 150ft
Cable
|
|
Item#
|
EUC-2075
---Stock to built-in house & ships out within
7~15 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ White LED on 250ft
Cable
|
|
Item#
|
EUC-2150
---Stock to built-in house & ships out within
7~15 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ White LED on 500ft
Cable
|
|
Item#
|
EUC-2015NR
---Stock to built-in house & ships out within
3~7 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ 940nm Invisible IR LED on 50ft
Cable
|
|
Item#
|
EUC-2030NR
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ 940nm Invisible IR LED on 100ft
Cable
|
|
Item#
|
EUC-2045NR
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ 940nm Invisible IR LED on 150ft
Cable
|
|
Item#
|
EUC-2075NR
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ 940nm Invisible IR LED on 250ft
Cable
|
|
Item#
|
EUC-2150NR
---Stock to built-in house & ships out within
3~10 working
days---
|
|
Description
|
Snake Head Underwater Video Camera
w/ 940nm Invisible IR LED on 500ft
Cable
|
|
|
|
Specification:
*Subject
to change without prior notice
|
|
Sensor
|
Sony
1/3" Super HAD ll Color
CCD
|
|
Video
Resolution
|
Ultra
High 700
TVL (520K
pixel)
|
|
Video
Connector
|
BNC
Jack
|
|
Lens
|
Default 3.6mm Board Lend (FOV
92º Diagonally)
* Other
narrower or wider viewing angle lens is available upon a request w/
customization fee
|
|
Vertical
Depth
|
Maximum
depth can be submerged vertically up to 500ft
|
|
Signal
System
|
NTSC
(* PAL
only available w/ an order quantity over 5 units)
*Most of recent HD monitors & DVR are
automatically switches and compatible with both NTSC & PAL system,
but it would be more affordable for using a NTSC-to-PAL
converter or Analog CCTV Video to VGA
converter still necessary to covert between PAL & NTSC video in
order to use w/ your old monitor.
|
|
Camera
Compatibility
|
Compatible
with any conventional TV, monitor, or DVR system that equipped with a
composite video-in connector and requires a analog
to digital converter when viewing through PC or laptop that is not
equipped with a built-in TV or video capture card.
Power up the camera and plug the camera video cable into an available
video-in connector on your TV, monitor, or DVR system, you will see
the incoming live video instantly and only requires a proper connector
if cable connectors do not fit together.
|
|
Video
Output
|
1Vp-p
Composite Video
75 ohms
|
|
Luminance
S/N
Ratio
|
Over
48dB (AGC off)
|
|
Gamma
Correction
|
r
= 0.45
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Functions
|
Smart
Anti-reflection, E-Day Night, DWDR, AWB, AGC
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
* White
LED:
The
white light beam is seen by human eyes exactly same as what you see from a
conventional LED flashlight and it it the best when objects are viewed in
color at night as they seen in daylight.
|
|
LED
Beam Travel Distance in Air
|
*
EUC-2000
Series: White LED
- Appx. 25ft
* EUC-2000SR
Series: 850NM Strong Infrared LED
- Appx. 20ft
* EUC-2000NR
Series: 940NM No Red Glow Infrared LED
- Appx. 15ft
|
|
Light
Control
|
Auto
On-Off w/ IR LED & Manual On-Off w/ White LED
* Brightness adjust dimmer switch is available
upon a request w/ Customization fee
|
|
Lens Focus
|
Appx.
3 inches from the camera lens to infinity
|
|
Video
Connector
|
RCA
Plug w/ White LED Camera & BNC Jack w/ IR LED Camera
|
|
Power
Consumption
|
DC
12V±1V
/ 150mA (1.8Watts)
|
|
Minimum
Illumination
|
0.1
LUX @ LED off
|
|
Camera
Housing
|
Aluminum
Anodized in Black w/ Heavy Duty Rubber Tube Shielded
|
|
Operating
Temp.
|
-10ºC
~ 50ºC (14ºF ~ 122ºF)
|
|
Storage
Temp.
|
-20ºC
~ 60ºC
|
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
|
Weight
/ Dimension
|
100g (Camera Head only)
|
|
Dimension
|
 Camera
only --- L78mm
x Ø31mm
*
RFQ your own camera dimension
|
|
Operating
Temp.
|
-10ºC
~ 50ºC (14ºF ~ 122ºF)
|
|
Storage
Temp.
|
-20ºC
~ 60ºC
|
|
Cable
|
Ø5
~ 7mm
for Cable length up to 500ft & Ø8
~ 11.5mm
for longer
|
|
Cable
Length
|
Selectable
from 50ft, 100ft, 150ft, 250ft, 500ft, or
*** Customized extensive long cable length available
upon on a request up to 1,500ft
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
Underwater
Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Quick Starter Guide, Video Recording Monitor w/
Detachable Sunshade & Camera Rechargeable Battery Kit
when ordered optionally.
|
|
Optional Devices
|
|
|
* Portable
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
* Click hare to review more
product details
|
|
|
* Detachable & Foldable Sunshield
* Hybrid video compatiable w/ HD-AHD, HD-TVI, HD-CVI, & Analog
video
* High capacity battery w/ Built-in 3.7V Rechargeable Battery
* Convinient DC12V output can power up your DC12V camera or device
* Click hare to review more
product details
|
